CUSTOMIZED SOLUTION

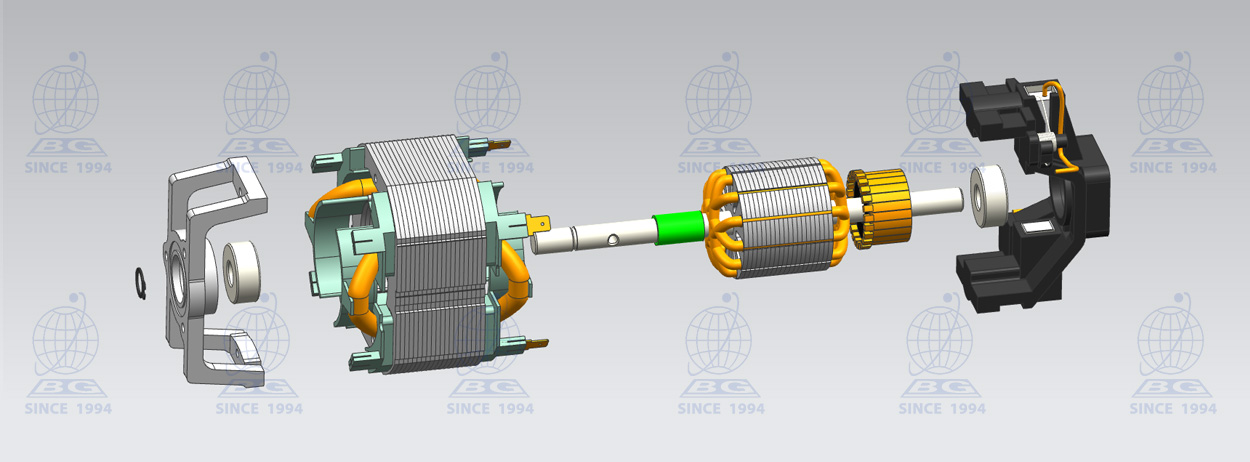

Customized Solution -Universal Motor / AC Motor


What are universal motor?

Single-phase series-excited motor is commonly known as universal motor, which is named because the armature winding and excitation winding are connected in series. Single-phase series-excited motor is an AC and DC dual-use motor, which can work with both AC power and DC power.

As a professional motor customized and manufacture,BG provide OEM&ODM service,we can produce the motor based on your requirement within reasonable limits.


products series

Power Range:10W-1200W
voltage Range:AC110-220V,50/60Hz
Rated Speed Range:4000-15000RPM
Size Range(diameter):44MM-95MM
Shaft:Based on the drawing you offered,we can process the shaft into corresponding diameter,length and shape.
Front&back cover:We offer the professional moulding service with customers’ requirement and drawing.
The parts can be paired with universal motor:Planetary Gear Box/EMC/Overheat protector

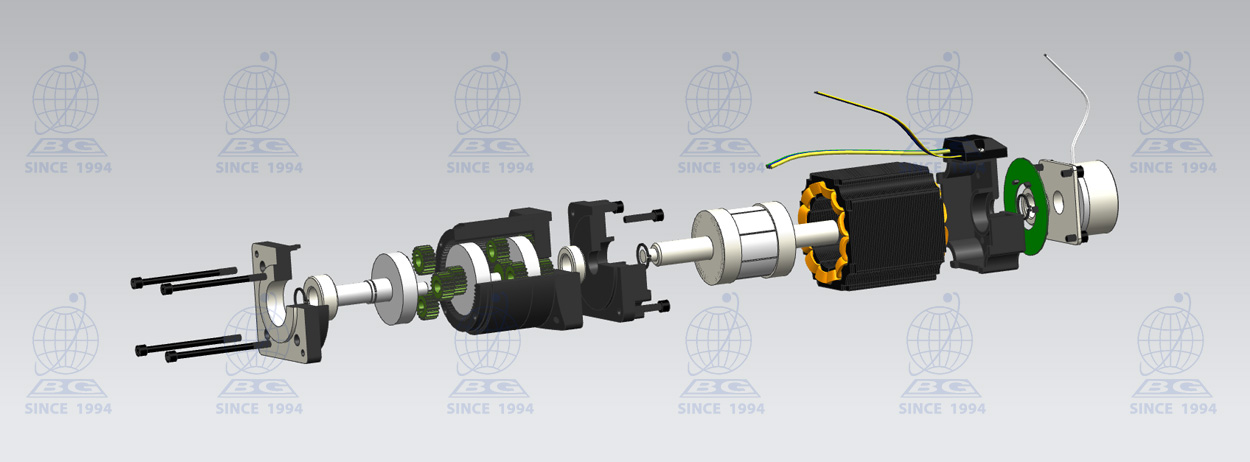

Customized Solution -DC Brushless Motor


What are DC Brushless Motors? A motor converts supplied electrical energy into mechanical energy. Various types of motors are in common use. Among these, brushless DC motors (BLDC) feature high efficiency and excellent controllability, and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types.
As a professional motor customized and manufacture,BG provide OEM&ODM service,we can produce the motor based on your requirement within reasonable limits.






products series
Power Range:5W-20KW
Voltage Range:DC6V-310V,AC110V,220V,50/60Hz
Rated Speed Range:1500-100,000RPM
Size Range(diameter):28MM-258MM
Shaft:Based on the drawing you offered,we can process the shaft into corresponding diameter,length and shape.
Mounting hole:We can located the mounting hole with your requirement within reasonable range.
Protection Class:Based on your needs,up to IP68
Install method:Adjust motor into horizontal or vertical arrangement fit for your product.
Insulation Class:With your requirement,we can used varnished wire with different thermal resistance to reach class B-F.
The parts can be paired with brushless motor:Gear box,brake,encoder and driver

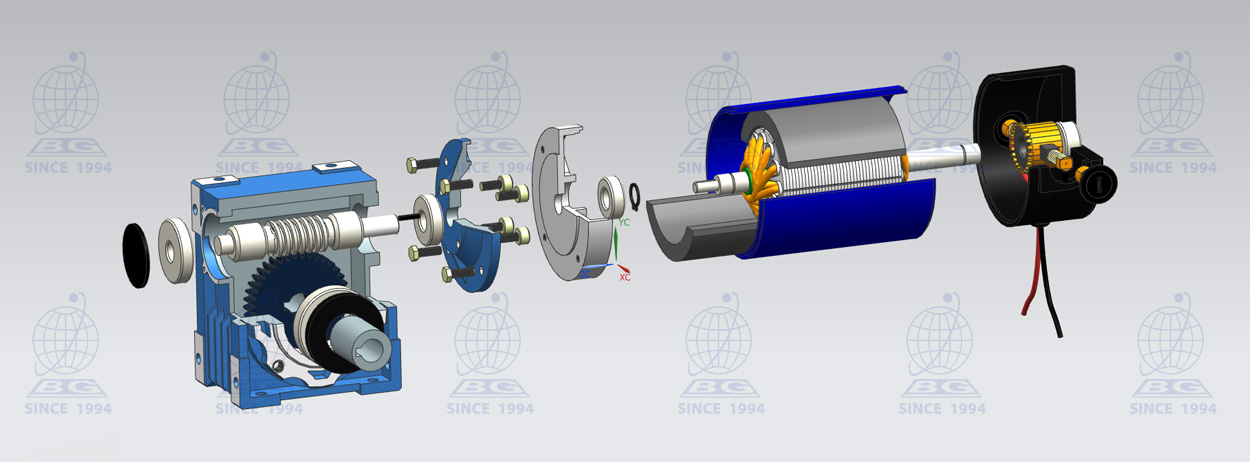

Customized Solution -DC Brush Motor


What are DC brushed motor? A brush motor is a DC motor with a fixed main pole and brushes on the stator and an armature winding and commutator on the rotor. The electrical energy from the DC power supply enters the armature winding through the brushes and commutator to produce armature current, and the magnetic field generated by the armature current interacts with the main magnetic field to produce electromagnetic torque, which makes the motor rotate and drive the load.
Brush motor mechanism is simple, easy to produce and process, easy to maintain, easy to control; DC motor also has a fast response, large starting torque, from zero speed to rated speed with the performance of rated torque can be provided.

products series
Power Range:1W-1000W
voltage Range:DC3V-220V
Rated Speed Range:1500-6000RPM
Size Range(diameter):28MM-130MM
Shaft:Based on the drawing you offered,we can process the shaft into corresponding diameter,length and shape.
Mounting hole:We can located the mounting hole with your requirement within reasonable range.
Protection Class:Based on your needs,up to IP65
Install method:Adjust motor into horizontal or vertical arrangement fit for your product.
The parts can be paired with brushless motor:Gear box,brake,and encoder
