Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | / |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤65dB | Protection Class | IP40 |
| Work Condition | S1.S2.S3 |
Advantages
- 01High Efficiency:
Due to the brushless design that eliminates frictional losses between the brushes and the commutator, BLDC motors are generally more efficient than brushed motors, especially under high load conditions.
- 02Low Maintenance:
Since there are no brushes, BLDC motors do not need to be replaced regularly, reducing maintenance costs and time.
- 03High Reliability And Long Life:
The brushless design reduces mechanical wear and improves the reliability and service life of the motor
- 04High Power Density:
BLDC motors can provide high power output in a small volume, which is suitable for application scenarios where space is limited.
05Precise speed and position control:
Due to the electronic commutation mode of BLDC motors, precise speed and position control can be realized, which is suitable for applications that require high-precision control.
06Quiet operation:
The brushless motor operates with low noise because there is no frictional noise of the brushes and commutators.
07High speed:
BLDC motor can achieve high speed, suitable for high-speed applications, such as power tools and high-speed rotating equipment.
08Better thermal management:
The stator of brushless motors is usually surrounded by the rotor, which has a better heat dissipation effect and helps to improve the efficiency and life of the motor.
Motor Technical Data
| Electrical Specifications | |||||||||
| Model | RATED LOAD | NO LOAD | STALL | ||||||
| Voltage | Power | Speed | Torque | Current | Speed | Current | Torque | Current | |
| V | W | rpm | N.m | A | rpm | A | N.m | A | |
| BG 83ZYT01 | 24 | 150 | 3000 | 0.48 | 8.93 | 2000 | 1.79 | 1.43 | 26.79 |
| We can also customize products according to customer requirements. | |||||||||
| Worm Gear Motor Technical Data-BG | ||||||||
| Reduction ratio (1: xx) | 30 | 60 | / | / | / | / | / | / |
| Rated speed (rpm) | 100 | 50 | / | / | / | / | / | / |
| Rated torque (N.m) | 7 | 14 | / | / | / | / | / | / |

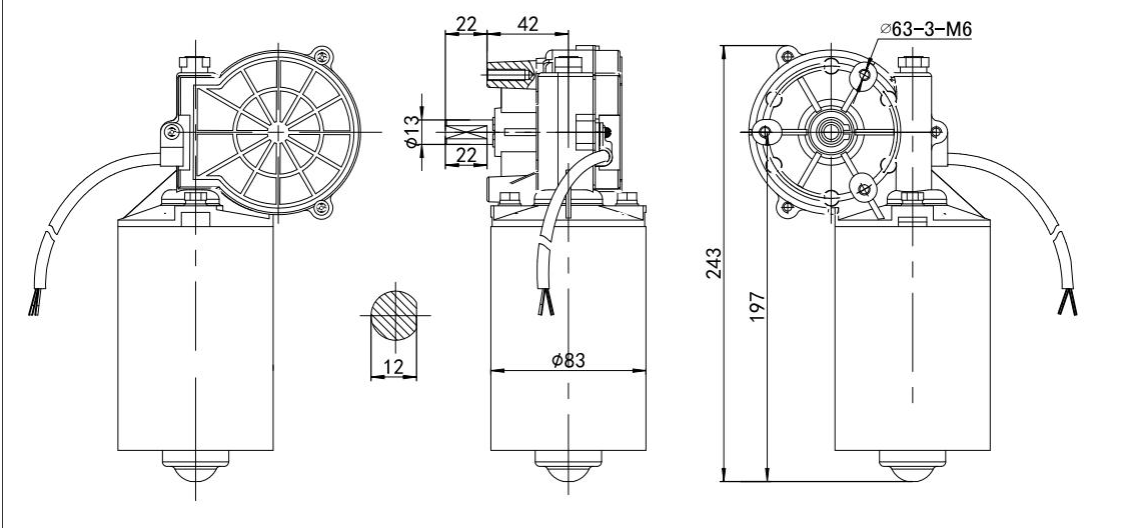

Mechanical Dimensions
Customizable solutions
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers.

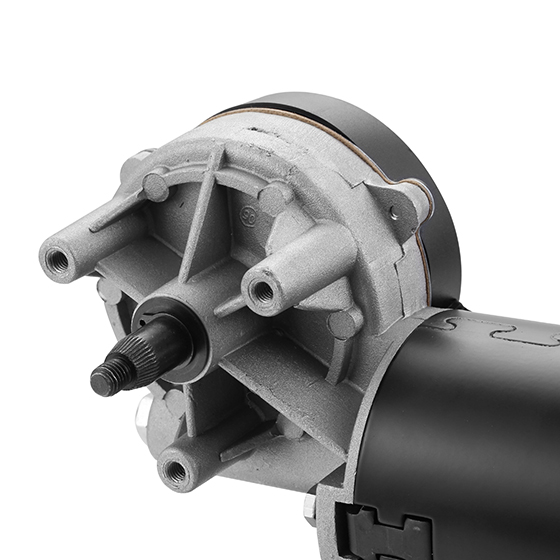

Parts
Applications
Motor Selection Details
01Application requirements:
Specific application scenarios (e.g., industrial robots, drones, power tools, AGVs, medical equipment, etc.).
Required operating environment (e.g., temperature range, humidity, dust and water resistance, etc.).02Motor Specifications:
Rated voltage and Current Rated power and peak poweSpeed range (RPM, rpm).Torque requirements (rated torque and maximum torque).Efficiency requirements.
03
Dimensions & Weight:
Dimensions (diameter, length, etc.).Weight Limit.
04Control Requirements:
Control type (e.g. open-loop control, closed-loop control)、Type of sensor required (e.g. Hall sensor, encoder).
05Connection & Installation:
Type and size of shaft、Installation method (flange mounting, base mounting, etc.Wiring method and connector type.
06Power requirements:
Power supply type (DC power, battery, AC power, etc.).Rated voltage range and allowable voltage fluctuations.
07Environmental conditions:
Ingress protection (e.g. IP rating)、Operating temperature range、Operating temperature range、Operating temperature range
08Other special requirements:
Noise level (for noise-sensitive applications, choose a low-noise, low-vibration motor).
Electromagnetic Compatibility (EMC)、Lifetime and reliability requirements.
