Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | 3 |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤65dB | Protection Class | IP40 |
| Work Condition | S1.S2.S3 |
Advantages
- 01High Efficiency:
Due to the brushless design that eliminates frictional losses between the brushes and the commutator, BLDC motors are generally more efficient than brushed motors, especially under high load conditions.
- 02Low Maintenance:
Since there are no brushes, BLDC motors do not need to be replaced regularly, reducing maintenance costs and time.
- 03High Reliability And Long Life:
The brushless design reduces mechanical wear and improves the reliability and service life of the motor
- 04High Power Density:
BLDC motors can provide high power output in a small volume, which is suitable for application scenarios where space is limited.
05Precise Speed And Position Control:
Due to the electronic commutation mode of BLDC motors, precise speed and position control can be realized, which is suitable for applications that require high-precision control.
06Quiet Operation:
The brushless motor operates with low noise because there is no frictional noise of the brushes and commutators.
07High Speed:
BLDC motor can achieve high speed, suitable for high-speed applications, such as power tools and high-speed rotating equipment.
08Better Thermal Management:
The stator of brushless motors is usually surrounded by the rotor, which has a better heat dissipation effect and helps to improve the efficiency and life of the motor.
Motor Technical Data
| Model | Voltage | No-load | Rated Load | Stall | Body Length | ||||||
| Speed | Current | Power | Speed | Torque | Current | Torque | Current | ||||
| V | rpm | A | W | rpm | Nm | A | Nm | A | L:mm | ||
| BG-42BLDC-2440S-1 | 24 | 5200 | 0.60 | 78 | 4000 | 0.185 | 5.2 | 0.55 | 15.60 | 80 | |
| BG-42BLDC-4840S-1 | 48 | 5200 | 0.4 | 105 | 4000 | 0.250 | 3.3 | 0.75 | 9.90 | 100 | |
| Model | Reduction Ratio | 1：X | 1：4 | 1：14 | 1：19 | 1：27 | 1：51 | 1：71 | 1：100 | 1：139 | |
| Gearbox length | L：mm | 26 | 34 | 41 | |||||||
| BG-42BLDC-4840S-1-PG42 | NO-load speed | rpm | 1300 | 371 | 274 | 193 | 102 | 73 | 52 | 37 | |
| Rated speed | rpm | 1000 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | ||
| Rated torque | N.m | 0.90 | 2.84 | 3.85 | 5.47 | 9.00 | 9.00 | 9.00 | 9.00 | ||

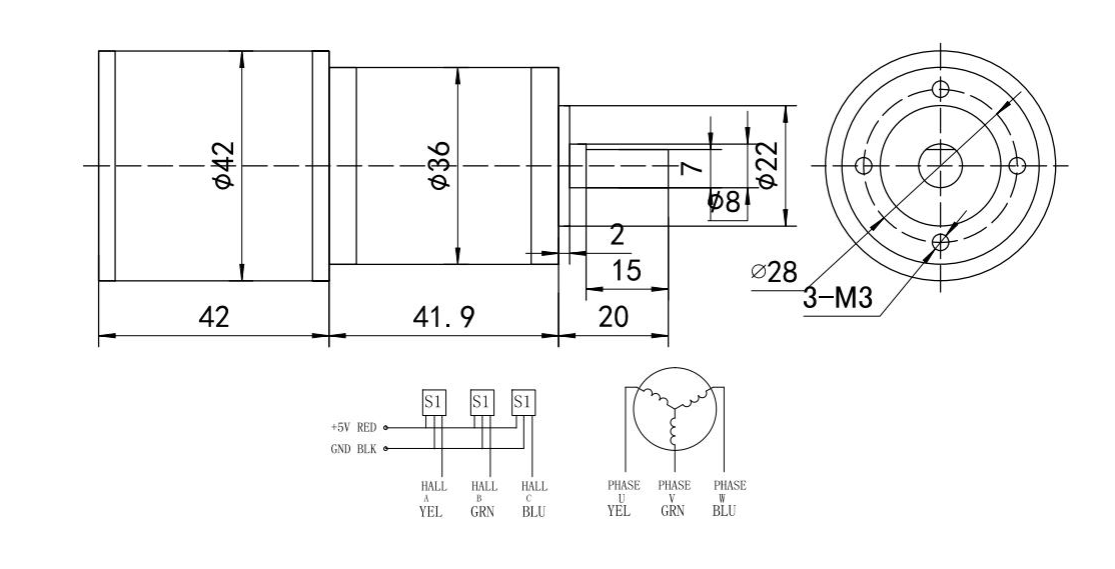

Mechanical Dimensions
Customizable solutions
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers.

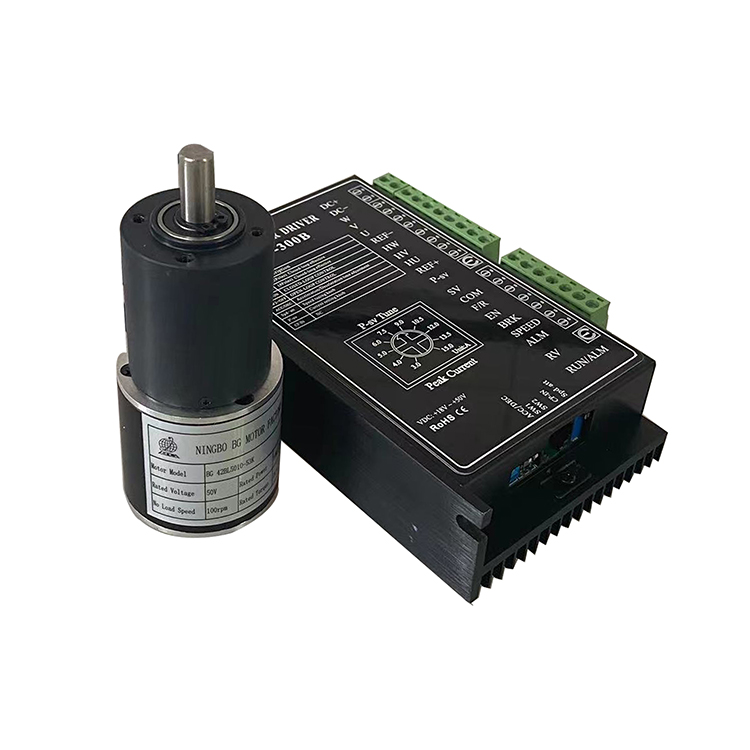

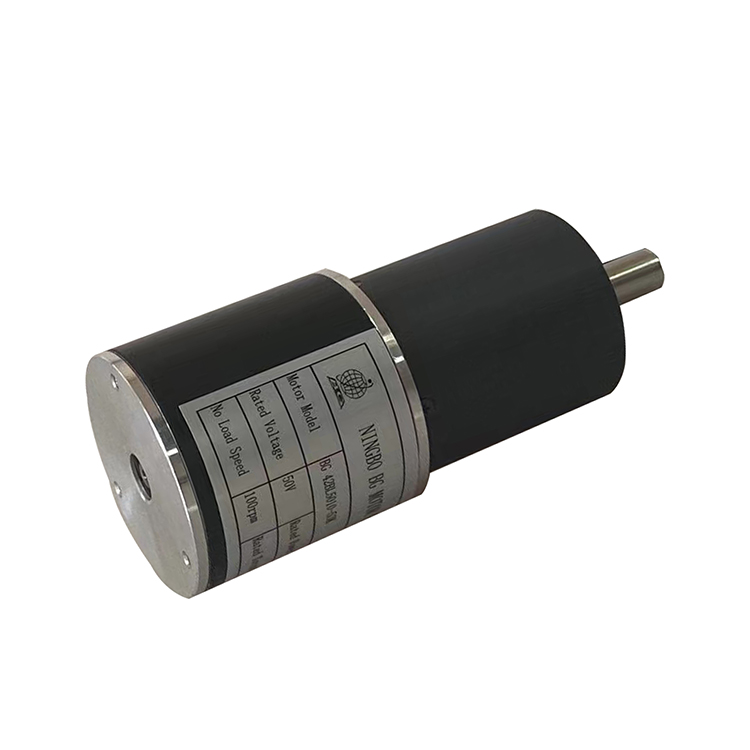

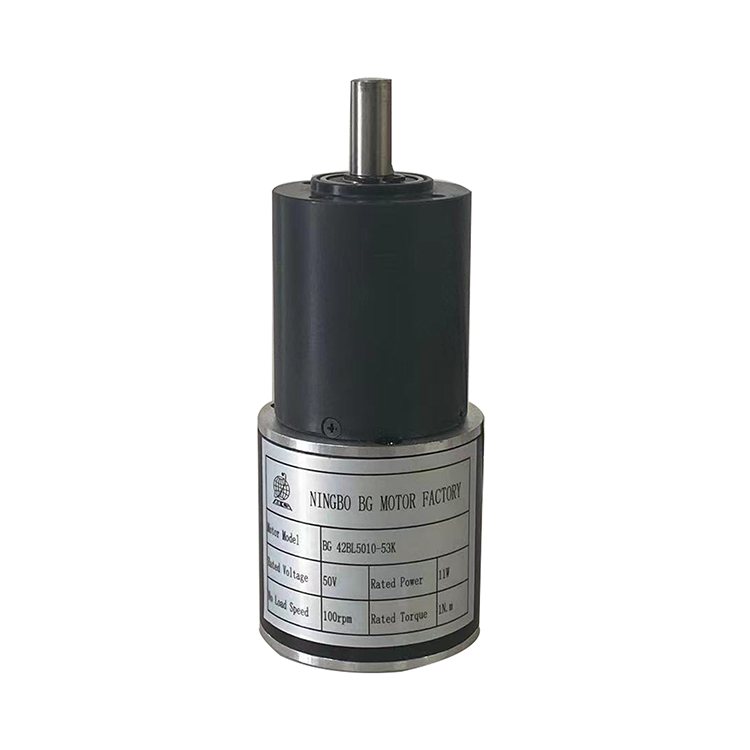

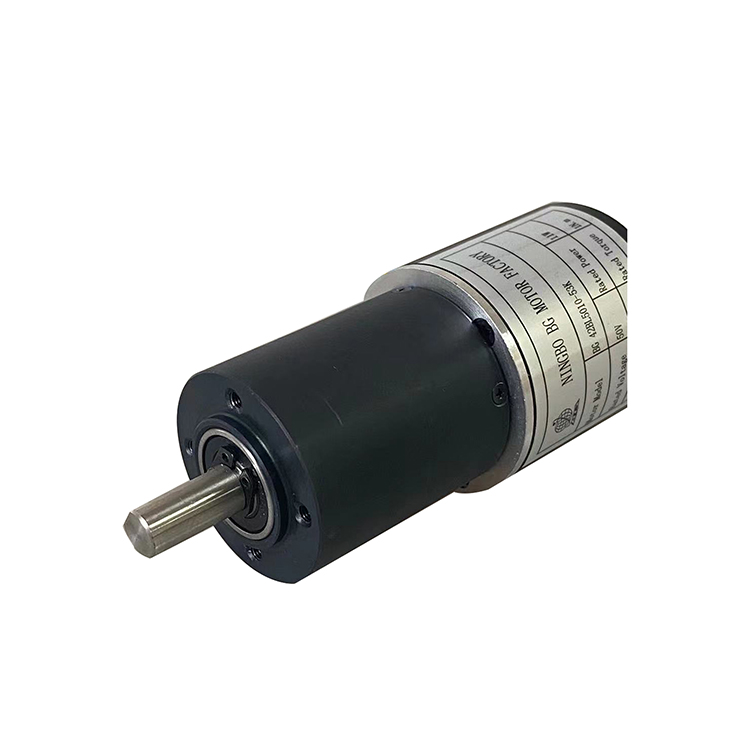

Parts
Applications
Motor Selection Details
01Application Requirements:
Specific application scenarios (e.g., industrial robots, drones, power tools, AGVs, medical equipment, etc.)
Required operating environment (e.g., temperature range, humidity, dust and water resistance, etc.)02Motor Specifications:
Rated voltage and currentRated power and peak poweSpeed range (RPM, rpm)Torque requirements (rated torque and maximum torque)Efficiency requirements.
03
Dimensions & Weight:
Dimensions (diameter, length, etc.)Weight Limit.
04Control Requirements:
Control type (e.g. open-loop control, closed-loop control)、Type of sensor required (e.g. Hall sensor, encoder).
05Connection & Installation:
Type and size of shaft、Installation method (flange mounting, base mounting, etc.Wiring method and connector type.
06Power Requirements:
Power supply type (DC power, battery, AC power, etc.)Rated voltage range and allowable voltage fluctuations.
07Environmental Conditions:
Ingress protection (e.g. IP rating)、Operating temperature range、Operating temperature range、Operating temperature range.
08Other Special Requirements:
Noise level (for noise-sensitive applications, choose a low-noise, low-vibration motor).
Electromagnetic Compatibility (EMC)、Lifetime and reliability requirements.
