Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | / |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤65dB | Protection Class | IP40 |
| Work Condition | S1.S2.S3 |
Advantages
- 01High torque output: The planetary gear structure can provide high torque output, which is suitable for small equipment that requires large torque.
- 02High efficiency: The efficiency of planetary gear reducer motor is usually relatively high, about 85%-95%.
- 03High rigidity and precision: The planetary gear has a compact structure, which can ensure the high rigidity and high precision of the transmission system.
- 04Small size:Due to the unique design of planetary gears, it is smaller in size and light in weight while providing the same output power.
05Smooth operation:
Due to the uniform distribution of gears, the operation of the planetary geared motor is very smooth and the noise is low.
Motor Technical Data
| Electrical Specifications | |||||||||
| Model | RATED LOAD | NO LOAD | STALL | ||||||
| Voltage | Power | Speed | Torque | Current | Speed | Current | Torque | Current | |
| V | W | rpm | N.m | A | rpm | A | N.m | A | |
| BG 52ZYT-1 | 12 | 32 | 2700 | 0.12 | 4 | 3600 | 0.7 | 0.36 | 12 |
| BG 52ZYT-2 | 24 | 32 | 2700 | 0.12 | 2 | 3600 | 0.4 | 0.36 | 6 |
| We can also customize products according to customer requirements. | |||||||||
| Planetary Gear Motor Technical Data-BG | ||||||||
| Reduction ratio (1: xx) | 3.7 | 13.7 | 50.9 | 99.5 | 139 | 369 | 516 | 977 |
| Rated speed (rpm) | 730 | 197 | 53 | 27 | 19 | 7 | 5 | 3 |
| Rated torque (N.m) | 0.38 | 1.32 | 4.9 | 8 | 8 | 8 | 8 | 8 |

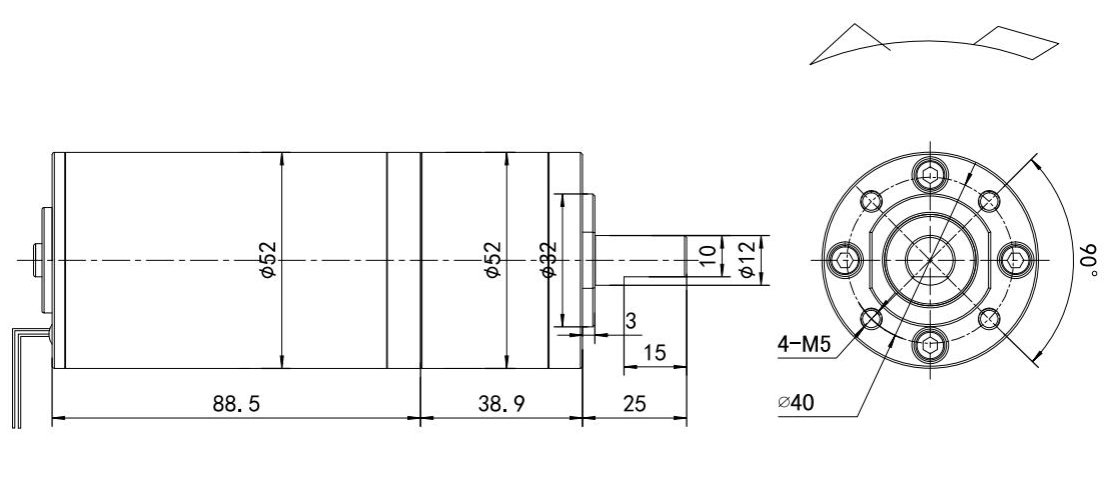

Mechanical Dimensions
Customizable solutions
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers.
Parts
Applications
Motor Selection Details
01Scenarios and working conditions:
Determine what kind of application the geared motor will be used for, such as conveyor machinery, lifting equipment, conveyor belts, etc.Determine operating conditions, such as ambient temperature, humidity, and whether waterproof, dustproof, and other characteristics are required.
- 02Required output parameters:
Determine the required output speed and output torque.Determine the required reduction ratio, i.e. the ratio of the speed of the input shaft to the output shaft.
03
Space Constraints And Installation Requirements:Determine the size and shape of the installation space.Determine if there are special installation requirements, such as vertical installation, horizontal installation, etc.04Motor Performance And Efficiency Requirements:
Determine the requirements for motor efficiency, such as whether a high-efficiency motor is required to save energy.Determine the requirements for the stability of the motor operation and the noise level.
05Economic Considerations:
Consider the customer's budget constraints and recommend products that fit the budget and meet the needs.06Additional Features And Special Requirements:
If there are special functional requirements, such as self-locking function, emergency braking function, etc., you need to understand the specific needs of customers in detail07Finally:
By gathering and understanding these details, we can more precisely recommend the most suitable geared motor for our customers to meet their specific application needs and expected performance requirements.
