Analysis of brushless DC motor FOC, square wave and sine wave control

The brushless DC motor is developed on the basis of the brushed DC motor. It has the advantages of stepless speed regulation, wide speed regulation, strong overload capacity, good linearity, long life, small size, light weight and large output. It solves a series of problems existing in brushed motors, and is widely used in various fields such as industrial equipment, instrumentation, household appliances, robots, and medical equipment. Because brushless motors do not have brushes for active commutation, an electronic commutator is required for commutation. What the brushless DC motor driver accomplishes is the function of this electronic commutator.

Mainstream control methods of brushless DC motors:

Now there are three main types: FOC (also known as vector frequency conversion, magnetic field vector directional control), square wave control (also known as trapezoidal wave control, 120° control, 6-step commutation control) and sine wave control. So what are the advantages and disadvantages of each of these three control methods?

Square wave manipulation:

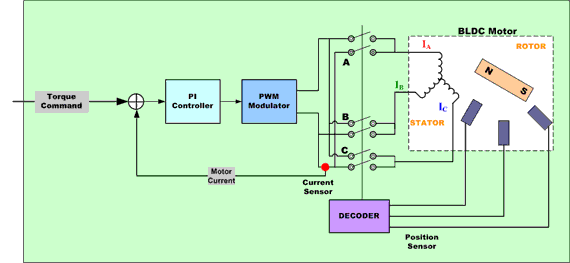

The square wave control uses a Hall sensor or a non-inductive budget algorithm to obtain the position of the motor rotor, and then commutates 6 times (one commutation every 60°) within a 360° electrical cycle according to the rotor position. Each commutated azimuth motor outputs a force in a specific direction, so it can be said that the azimuth accuracy of square wave manipulation is electrical 60°. Because the phase current waveform of the motor is close to a square wave under the control of this method, it is called square wave control.

The advantage of the square wave control method is that the control algorithm is simple, the hardware cost is low, and a high motor speed can be obtained by using a controller with ordinary functions; the disadvantage is that the torque fluctuation is large, there is a certain current noise, and the power cannot reach the maximum value. . Square wave control is suitable for occasions that do not require high motor rolling function.

Sine wave manipulation:

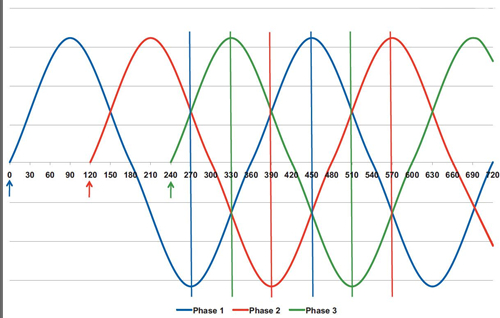

The sine wave control method uses the SVPWM wave, the output is a 3-phase sine wave voltage, and the corresponding current is also a sine wave current. This method does not have the concept of square wave control commutation, which may be considered as an infinite number of commutations in an electrical cycle. Obviously, the sine wave control is compared with the square wave control, the torque fluctuation is smaller, the current harmonics are less, and the control feels more "delicate", but the functional requirements of the controller are slightly higher than the square wave control, and the motor power cannot be used. to the maximum value.

FOC control:

The sine wave control completes the control of the voltage vector and directly controls the size of the current, but cannot control the direction of the current. The FOC control method can be regarded as an upgraded version of the sine wave control, which completes the control of the current vector, that is, the vector control of the motor stator magnetic field.

Because the direction of the motor stator magnetic field is controlled, the time between the motor stator magnetic field and the rotor magnetic field can be kept at 90° to achieve the maximum torque output under a certain current. The advantages of the FOC control method are: small torque fluctuation, high power, low noise, and fast dynamic response; the disadvantages are: high hardware cost, high requirements for controller functions, and matching motor parameters.

Which method is more suitable for future development?

FOC is now the best choice for efficient control of brushless DC motors (BLDC) and permanent magnet synchronous motors (PMSM). FOC precisely controls the size and direction of the magnetic field, so that the motor has stable torque, low noise, high power, and high-speed dynamic response. Because of the obvious advantages of FOC, it has gradually replaced the traditional control method in many applications, and has attracted much attention in the sports control profession.

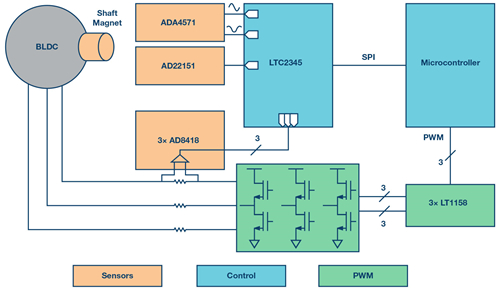

The typical control block diagram of FOC is as follows. In order to obtain information such as the orientation of the motor rotor, the motor speed, and the current size as a response, it is necessary to first collect the motor phase current, perform a series of mathematical transformations and budget algorithms on it, and obtain a decoupled, easy-to-control response quantity. Then, the dynamic adjustment is performed according to the error between the reaction amount and the target value, and finally a 3-phase sine wave is output to drive the motor to roll.

FOC can be divided into sensored FOC and sensorless FOC according to whether the motor has a sensor or not.

Regarding the sensored FOC, because the sensor of the motor (usually the encoder) can reflect the orientation information of the motor rotor, the orientation budget algorithm can not be used in the control. Said that the control function is often required to be higher.

Regarding the sensorless FOC, because the motor does not have any sensor, the position information of the motor rotor cannot be obtained by simply reading the measurement value of the sensor. Therefore, in the control, it is necessary to collect the motor phase current and use the position budget algorithm to calculate the rotor position. Although the control of the sensorless FOC is difficult, it can prevent the risk of sensor failure, save the cost of the sensor, and simplify the wiring between the motor and the driver board. Now, non-inductive FOC is mostly used in fan occasions.
