Alternating current (AC) powers nearly every modern device. However, many people may not realize the critical role AC motors play in powering countless machines. Understanding AC motors and their types can help you optimize applications and enhance operational efficiency.
AC motors are driven by alternating current and work based on the principles of electromagnetism. This connection between AC power and electromagnetism enables motors to convert electrical energy into mechanical movement.
AC motors are essential components in various industrial and household applications. To dive deeper into their functionality, let's explore how they work and why they are indispensable.
AC motors convert electrical energy into mechanical energy through the interaction of a magnetic field and a conductor. The process involves alternating current flowing through coils in the stator, which generates a rotating magnetic field. This field induces current in the rotor, causing it to turn. The motion of the rotor creates mechanical torque that powers the machinery or equipment connected to the motor. There are two primary types of AC motors: synchronous motors and induction motors.
AC Motor is an electric motor that provides power through an alternating current (AC) power source and is widely used in many fields such as industry, home appliances and transportation. According to different working principles, structural designs and usage characteristics, AC motors can be categorized into different types. The following are the main classification methods and specific types of AC motors:

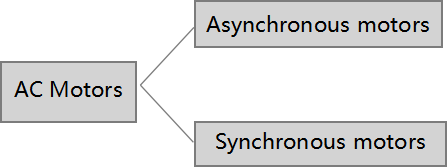

Asynchronous motor (Induction Motor)
Principle: The rotor of an asynchronous motor generates an induced current by interacting with the rotating magnetic field generated by the stator, thus generating torque. It is characterized by a rotor speed that is slightly lower than the synchronous speed of the rotating magnetic field of the stator, and is therefore called an asynchronous motor.
Type:
1、Squirrel Cage Asynchronous Motor (Squirrel Cage Induction Motor): the most common type, the rotor consists of conductive strips, the shape is similar to a cage, the structure is simple and easy to maintain.
2、Wound Rotor Induction Motor: The rotor consists of windings and slip rings, suitable for occasions where starting torque and running speed need to be adjusted.
Applications: Widely used in fans, pumps, compressors, conveyor belts, cranes and other industrial equipment.
Synchronous Motor
Principle: The rotor speed of the synchronous motor is synchronized with the magnetic field generated by the stator, and there is no speed difference. It relies on an external DC power supply to provide excitation current for the rotor, which keeps the rotor magnetic field synchronized with the stator magnetic field.
Type:
1、AC Excited Synchronous Motor (Externally Excited Synchronous Motor): Uses an external power supply to provide an excitation current for the rotor.
2、Permanent Magnet Synchronous Motor (Permanent Magnet Synchronous Motor): The rotor is made of permanent magnet material, eliminating the need for an external excitation source, with a simple structure and high efficiency.
Applications: Synchronous motors are usually used in applications that require constant speed, such as generators, precision equipment, synchronous speed control drives, and so on.

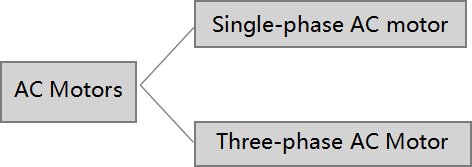

Single-phase AC motor (Single-phase AC Motor)
Principle: The stator of a single-phase AC motor provides current through a single-phase AC power supply, and the rotor generates torque through the principle of induction. Single-phase motors are usually started with the help of a starting capacitor or a starting winding.
Type:
1、Single-phase induction motor (Single-phase Induction Motor): suitable for small power devices such as fans, power tools, small appliances, etc.
2、Single-phase Capacitor-Start Induction Motor (Capacitor-start Induction Motor): starts with a capacitor to provide higher starting torque and is commonly used for appliances.
3、Single-phase series excitation motor (Universal Motor): can work under DC and AC power supply, commonly used in home appliances and tools, such as vacuum cleaners, electric squeegees, etc.
Applications: For home appliances, air conditioners, electric fans, washing machines, power tools and other small power equipment.
Three-phase AC Motor (Three-phase AC Motor)
Principle: Three-phase AC motors drive the stator winding through a three-phase AC power supply to produce a three-phase rotating magnetic field, and the rotor inductively generates torque. Three-phase motors are smooth and efficient, and are suitable for high-power loads.
Type:
1、Three-phase asynchronous motor (Three-phase Induction Motor): is the most common type of three-phase motor, which is widely used in industrial equipment, pumps, fans and other fields.
2、Three-phase Synchronous Motor (Three-phase Synchronous Motor): used for precision equipment and generators that require constant speed drive.
Applications: Widely used in industrial production of high-power drive equipment, such as compressors, pumps, fans, electric locomotives, factory automation and so on.

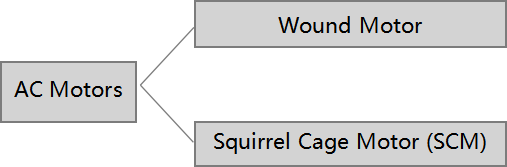

Wound Motor
Principle: The stator and rotor of a wire-wound motor are wound by coils to provide higher starting torque and adjustable speed. Wound motors are suitable for applications requiring variable speed control and higher starting torque.
Applications: high power industrial equipment, cranes, compressors, etc.
Squirrel Cage Motor (SCM)
Principle: The rotor of a squirrel cage motor consists of electrically conductive strips that form a “cage-like” structure. Squirrel cage motors are stable, suitable for applications requiring low starting torque and simple maintenance.
Application: suitable for small and medium power drive equipment, such as fans, pumps, conveyor belts, etc..

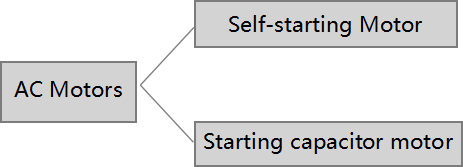

Self-starting Motor (Self-starting Motor)
This motor can be started without external equipment or auxiliary circuit, such as most of the asynchronous motors.
Starting capacitor motor (Capacitor-start Motor)
Capacitors provide additional starting torque during starting and are widely used in small appliances and household equipment.

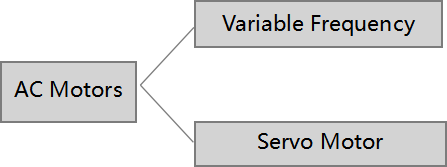

Variable Frequency Motor (Variable Frequency Motor)
Principle: The speed of the motor is controlled by a frequency converter to adapt to different working conditions. Commonly used in application scenarios that require speed regulation.
Applications: fans, pumps, air conditioning systems, etc.
Servo Motor
Principle: Servo motor usually adopts closed-loop control system to control position, speed and torque through precise adjustment.
Applications: CNC machine tools, robotics, automation control and other fields.
AC motors are mainly divided into two categories: asynchronous motors and synchronous motors, which can be further subdivided according to the number of phases of the motor, the starting method, and the construction. Different types of AC motors have their own advantages and applications. Asynchronous motors are widely used in industrial and home appliance equipment due to their simple structure and easy maintenance; synchronous motors are mainly used in high-precision and high-stability fields, such as generators and precision machinery. Selecting the right type of AC motor according to the needs is the key to ensure efficient and stable system operation.
AC motors are commonly used in many industries because they are relatively simple, cost-effective, and can operate continuously for long periods. Unlike DC motors, which require commutators and brushes, AC motors have fewer moving parts, reducing the need for maintenance. They also offer higher efficiency and reliability, making them ideal for continuous operations in industrial settings. The versatility of AC motors allows them to be employed in both large-scale industrial machinery and household appliances, such as washing machines, refrigerators, and HVAC systems.

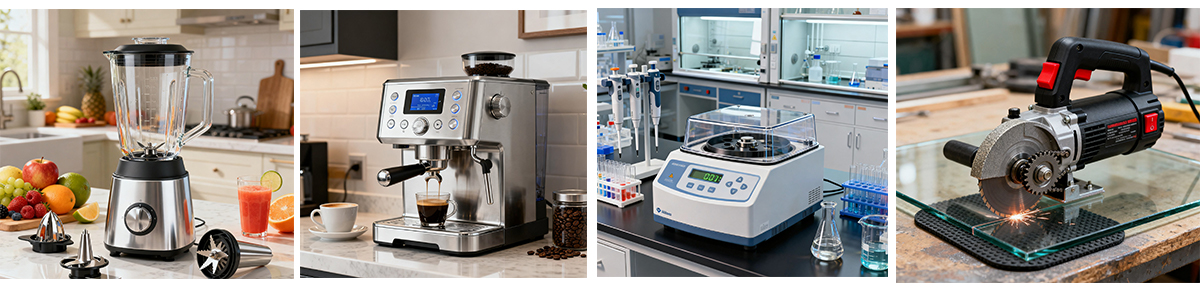

AC motors are used in a wide range of applications:
Industrial Machinery: AC motors power large-scale equipment like pumps, compressors, and conveyor systems.
HVAC Systems: Air conditioning units, fans, and ventilation systems rely on AC motors for efficient operation.
Home Appliances: Items such as washing machines, refrigerators, and air conditioning systems are powered by AC motors.
Electric Vehicles (EVs): Some EVs use AC motors for their efficiency and reliability in power conversion.
These examples show how AC motors drive various applications in both industrial and domestic environments, making them indispensable to modern society.
To get the most out of AC motors, several considerations must be made:
1. Proper Sizing: Ensure that the motor selected is properly sized for the application. A motor too large or too small can result in inefficiency and reduced lifespan.
2. Maintenance: Routine maintenance, including cleaning, lubrication, and inspection, will ensure that the motor continues to operate efficiently and reliably.
3. Control Systems: Use variable frequency drives (VFDs) to optimize the speed and torque of AC motors, particularly in variable load applications. VFDs also improve energy efficiency and extend the life of the motor.
4. Energy Efficiency: ｓｅｌｅｃｔ energy-efficient motors to reduce electricity consumption, particularly in high-demand industrial environments.
Maximizing the usefulness of AC motors depends on understanding the specific needs of your application and choosing the right motor type and control strategies.
Advantages of BG Motor as a Specialized Motor Manufacturer
BG Motor stands out as a leading manufacturer of specialized motors, offering high-performance
AC motors, including both synchronous motors and induction motors. BG Motor is committed to delivering customized motor solutions tailored to the specific needs of each client. The company's products feature:
High Precision and Performance: Designed for reliability, BG Motor's AC motors provide superior performance in various applications.
Customization: BG Motor offers tailored solutions, ensuring that each motor meets the unique requirements of different industries.
Energy Efficiency: BG Motor focuses on designing motors that reduce energy consumption while maintaining high performance, making them ideal for both commercial and industrial applications.
Professional motor manufacturing: Bogong Motor is a professional motor manufacturer, with 30 years of R&D experience, we are able to provide stable materials and high quality level, can manufacture the most perfect motor for you according to your needs.
With a reputation for reliability and innovation, BG Motor ensures that customers receive motors that enhance operational efficiency and productivity.
AC motors, including both synchronous motors and induction motors, are versatile and essential for countless applications in modern industry and daily life. BG Motor provides reliable, high-performance solutions for all your motor needs.
If you have any needs, pleasecontact us in time, we will have professional engineers to connect with you in time.
