Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | 3 |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤75dB | Protection Class | IP40 |
| Work Condition | S1.S2.S3 |
Advantages
- 01High Efficiency:
Due to the brushless design that eliminates frictional losses between the brushes and the commutator, BLDC motors are generally more efficient than brushed motors, especially under high load conditions.
- 02Low Maintenance:
Since there are no brushes, BLDC motors do not need to be replaced regularly, reducing maintenance costs and time.
- 03High Reliability And Long Life:
The brushless design reduces mechanical wear and improves the reliability and service life of the motor.
- 04High Power Density:
BLDC motors can provide high power output in a small volume, which is suitable for application scenarios where space is limited.
05Precise speed and position control:
Due to the electronic commutation mode of BLDC motors, precise speed and position control can be realized, which is suitable for applications that require high-precision control.
06Quiet operation:
The brushless motor operates with low noise because there is no frictional noise of the brushes and commutators.
07High speed:
BLDC motor can achieve high speed, suitable for high-speed applications, such as power tools and high-speed rotating equipment.
08Better thermal management:
The stator of brushless motors is usually surrounded by the rotor, which has a better heat dissipation effect and helps to improve the efficiency and life of the motor.
Motor Technical Data
| Model | Voltage | No-load | Rated Load | Stall | Body Length | ||||||
| Speed | Current | Power | Speed | Torque | Current | Torque | Current | ||||
| V | rpm | A | W | rpm | Nm | A | Nm | A | L:mm | ||
| BG-86BLDC-4830S-2 | 48 | 4000 | 4.07 | 1250 | 3000 | 3.98 | 32.6 | 11.94 | 97.66 | 130 | |
| BG-86BLDC-31030S | 310 | 4000 | 0.40 | 785 | 3000 | 2.50 | 3.2 | 7.50 | 9.50 | 130 | |
| Model | Reduction ratio | 1：X | 1：4 | 1：10 | 1：24 | 1：36 | 1：64 | 1：96 | 1：144 | 1：216 | |
| Gearbox length | L：mm | 80 | 94 | 108 | |||||||
| BG-86BLDC-4830S-2-PG86 | NO-load speed | rpm | 1000 | 400 | 167 | 111 | 63 | 42 | 28 | 19 | |
| Rated speed | rpm | 750 | 300 | 125 | 83 | 47 | 31 | 21 | 14 | ||
| Rated torque | N.m | 14.33 | 32.23 | 77.36 | 80.00 | 80.00 | 80.00 | 80.00 | 80.00 | ||

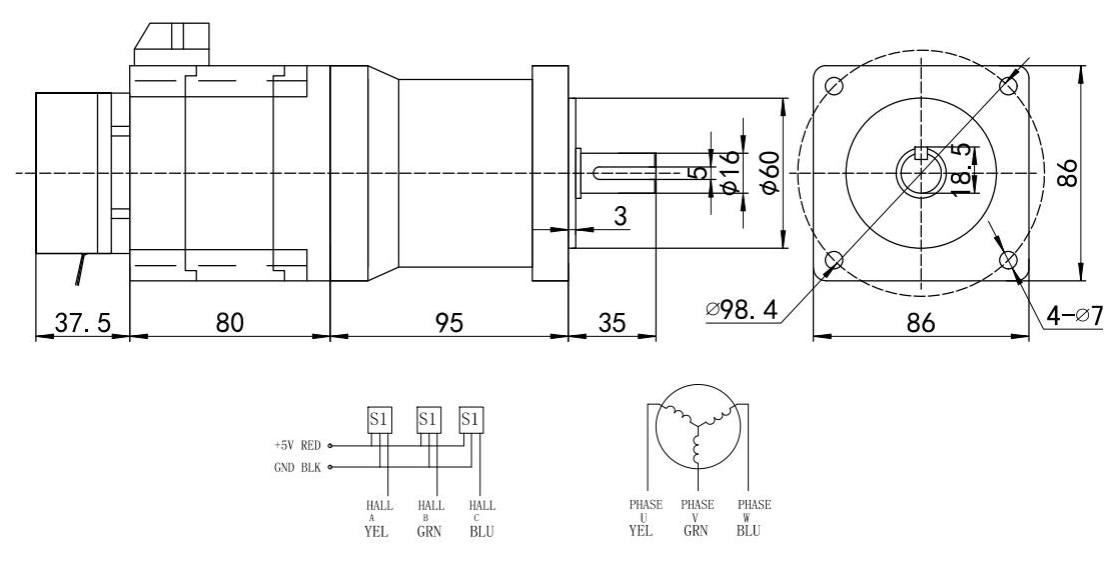

Mechanical Dimensions
Customizable solutions
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers.
Parts
Applications
Motor Selection Details
01Application requirements:
Specific application scenarios (e.g., industrial robots, drones, power tools, AGVs, medical equipment, etc.)
Required operating environment (e.g., temperature range, humidity, dust and water resistance, etc.)02Motor Specifications:
Rated voltage and currentRated power and peak poweSpeed range (RPM, rpm)Torque requirements (rated torque and maximum torque)Efficiency requirements
03
Dimensions & Weight:
Dimensions (diameter, length, etc.)Weight Limit
04Control Requirements:
Control type (e.g. open-loop control, closed-loop control)、Type of sensor required (e.g. Hall sensor, encoder)
05Connection & Installation:
Type and size of shaft、Installation method (flange mounting, base mounting, etc.Wiring method and connector type.
06Power requirements:
Power supply type (DC power, battery, AC power, etc.)Rated voltage range and allowable voltage fluctuations.
07Environmental conditions:
Ingress protection (e.g. IP rating)、Operating temperature range、Operating temperature range、Operating temperature range.
08Other special requirements:
Noise level (for noise-sensitive applications, choose a low-noise, low-vibration motor).
Electromagnetic Compatibility (EMC)、Lifetime and reliability requirements.
